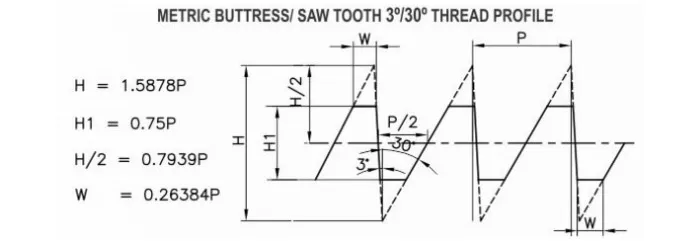

Saw Tooth / Metric Buttress Thread Gauges
SAW TOOTH THREADS are used in the construction of artillery with the screw type breech block / gun barrels OR vices & screw jack. As Buttress Threads can withstand the axial load placed on it OR high force only in one direction, these are suitable for above applications.
Specification:
American Specifications: ANSI/ ASME B1.9- 1973 for 7o/45o thread Profile.
Manufacturing Range :
Thread Plugs , Thread Rings, Check Plugs & Wear Check Plugs of Diameter from 1/2" to 12" and TPI from 20 to 3.
| Gauge Type | Diameter Range (MM) | Pitch in mm. | Tolerance Class |
| Thread Plug Gauges. | 10 - 300 | 2, 3, 4, 5, 6, 7, 8, 9, 10, 12 Pitches not covered here | 7H, 8H, 9H, |
| Thread Ring Gauges. | 10 - 260 | 6e*, 7e, 8e, 9e & 6c*, 7c, 8c & 9c | |
| Check Plug Gauges | 10 - 300 | can be supplied based | * 6e & 6c are not preferred |
| Wear Check Plug Gauges | 10 - 300 | If requested by customer | tolerance classes. |
| Thread Plugs gauges | Thread Ring, Check Plug & Wear Check Plugs | |||
| Tolerance class | Thread Engagement Type | |||
| Normal | Long | Normal | Long | |
| Medium | 7H | 8H | 7e | 8e |
| Coarse | 8H | IR | 8c | 9c |
